Vibrocompaction Design in Clarington: Ground Improvement for Loose Granular Soils

Clarington sits at roughly 105 meters above Lake Ontario, underlain by thick sequences of glaciofluvial sands and silty sands deposited during the retreat of the Wisconsin ice sheet. These loose granular units, particularly across the Bowmanville and Courtice areas, present a direct challenge for any project requiring controlled settlement or seismic performance. Vibrocompaction design addresses this by specifying probe spacing, energy input, and verification criteria tailored to the local stratigraphy. The municipality’s ongoing residential expansion north of Highway 2 has placed hundreds of new footings on soils where relative density before treatment rarely exceeds 45 percent. Getting the design right means reconciling NBCC 2020 seismic demands with CPT-based liquefaction assessments—work that demands a granular dataset, not generic assumptions. For deeper investigation of the pre-treatment stratigraphy, the team relies on spt drilling to calibrate blow counts against targeted density improvements.

Designing vibrocompaction in Clarington means translating CPT tip resistance into probe spacing—miss the fines content threshold and you’re densifying a soil that won’t respond.

Methodology and scope

Clarington’s microclimate swings from saturated spring thaw conditions to dry late-summer compaction windows, and this seasonal contrast directly influences vibrocompaction scheduling and pore pressure dissipation rates. The design process starts with a thorough characterization of the deposit: grain size distribution, fines content, and initial density state. A soil with less than 5 percent passing the No. 200 sieve responds well to vibratory densification; higher fines contents demand a combined approach, sometimes integrating stone columns where drainage and reinforcement are both required. The design deliverables include a grid layout—typically triangular patterns at 1.8 to 3.0 meter spacing—along with power and frequency parameters for the depth vibrator, stage-by-stage lift criteria, and post-treatment verification protocols. Every design references ASTM D6066 for liquefaction resistance and is validated against site-specific CPT data rather than textbook correlations. Settlement targets are set below 25 millimeters for standard slab-on-grade construction and tightened further for crane pads or silos. Backfill consumption, amperage records, and real-time compaction monitoring logs form the basis for construction QA, ensuring the treated ground meets the specified relative density—usually 70 to 85 percent, depending on the seismic site class assigned under NBCC Table 4.1.8.4.

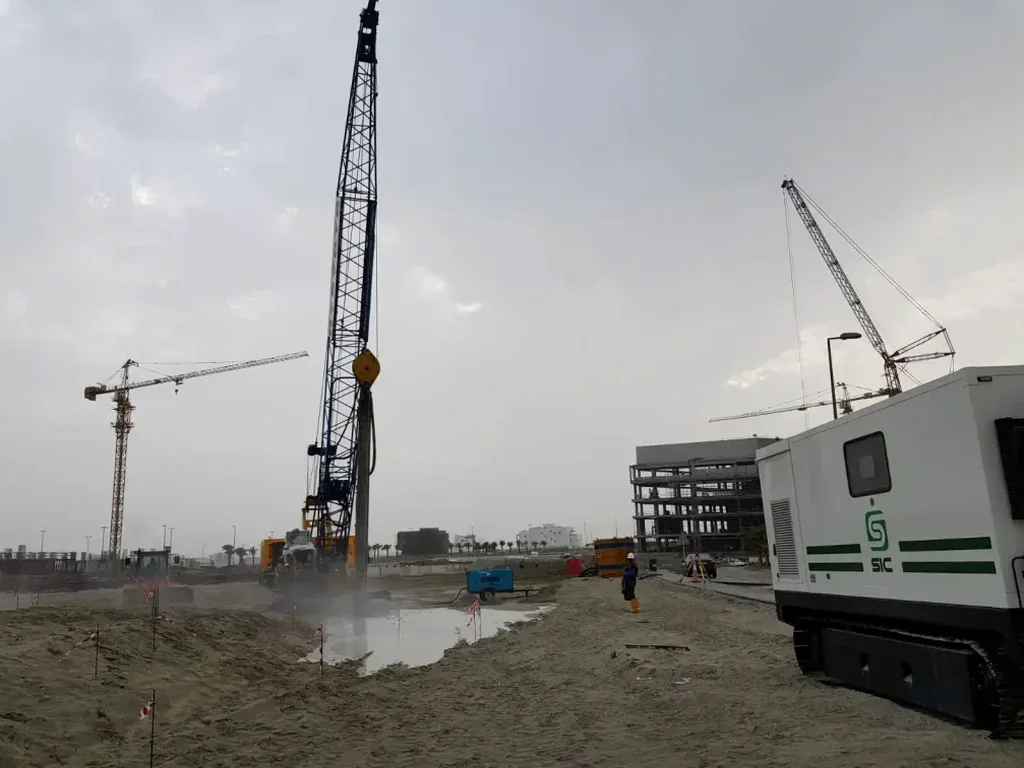

Vibrocompaction Design in Clarington: Ground Improvement for Loose Granular Soils

Local considerations

The contrast between the dense till outcrops near the Lake Ontario shoreline and the loose deltaic sands inland, around Enniskillen and Haydon, illustrates the risk of assuming uniform ground conditions. In the northern concessions, vibrocompaction design must account for a perched water table that rises within 1.5 meters of grade during March and April; ignoring this leads to underestimated pore pressure buildup and ineffective densification. On the lakeshore side, cobble-rich layers can obstruct probe penetration, requiring pre-drilling or a switch to top-feed stone columns. The most costly failures observed in the region stem from underreporting fines content: a deposit with 18 percent passing the No. 200 sieve will not densify under vibration alone, yet contractors occasionally push the method beyond its applicable range. A design that lacks stage-by-stage hold points and CPT verification leaves the owner with no proof of performance—and a foundation that may settle differentially under service loads.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering.co

Applicable standards

NBCC 2020 (Division B, Part 4 – Seismic Design), ASTM D6066-11 – Standard Practice for Determining the Normalized Penetration Resistance of Sands for Evaluation of Liquefaction Potential, ASTM D5778-20 – Standard Test Method for Electronic Friction Cone and Piezocone Penetration Testing of Soils, CSA A23.3-19 – Design of Concrete Structures (foundation references), Youd & Idriss (2001) – NCEER/NSF Liquefaction Resistance Guidelines

Associated technical services

01

Performance-Based Vibrocompaction Design

Full design package including grid layout, energy and frequency parameters, lift sequencing, and settlement analysis. Backed by CPT calibration and ASTM D6066 liquefaction assessment. Deliverables include construction specs, QA/QC hold points, and as-built documentation templates.

02

Post-Treatment Verification Testing

Independent CPT, SPT, and PMT testing at 5% of probe locations to confirm relative density targets. Includes before-and-after comparison reports, statistical analysis of tip resistance improvement, and final sign-off documentation for the geotechnical engineer of record.

Typical parameters

ParameterTypical value
Target relative density (Dr)70–85% (residential); >85% (critical infrastructure)
Maximum treatable depthUp to 35 m with extension tubes, depending on groundwater
Typical probe spacing (triangular grid)1.8–3.0 m center-to-center
Applicable soilsClean sands to silty sands (<12–15% fines)
Vibrator power range130–200 kW, frequency 30–50 Hz
Post-treatment verificationCPT, SPT, or PMT at 5% of probe locations
Liquefaction criterionFSL ≥ 1.2 per NBCC 2020 / Youd & Idriss (2001)

Frequently asked questions

What soil types in Clarington are suitable for vibrocompaction?

Vibrocompaction works best in clean sands and silty sands with fines content below 12 to 15 percent passing the No. 200 sieve. Much of Clarington’s subsurface consists of glaciofluvial sand deposits that fall within this range, particularly in the Bowmanville and Courtice corridors. Soils with higher fines content or significant clay layers require a different approach, such as stone columns or rigid inclusions. A comprehensive grain size analysis and CPT sounding are always performed before committing to the method.

What does vibrocompaction design cost for a typical Clarington project?

Design fees for vibrocompaction in Clarington generally range from CA$1,780 to CA$6,560, depending on the treatment area, depth of densification, and the number of CPT calibration points required. A small residential lot with a single building footprint falls at the lower end; a multi-acre commercial site with variable stratigraphy and stringent settlement criteria moves toward the upper bound. The scope includes the design package, QA/QC specifications, and post-treatment verification testing.

How is the performance of vibrocompaction verified after treatment?

Verification relies on before-and-after CPT soundings at a minimum of 5 percent of probe locations, supplemented by SPT tests where gravel content interferes with cone penetration. Relative density improvement is calculated from tip resistance and sleeve friction ratios using published correlations. Settlement monitoring during the first six months after construction provides additional confirmation. All data is compiled into a statistical report comparing pre- and post-treatment conditions, signed by the responsible engineer.
