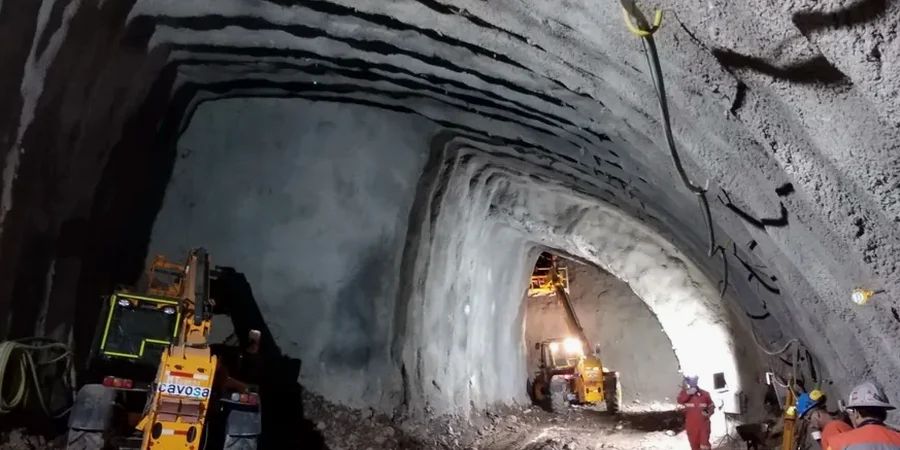

The geotechnical profile beneath Clarington shifts dramatically within a few kilometres. The northern reaches of Courtice sit atop dense glacial till where tunnel face stability is rarely a primary concern, while the southern portions of Bowmanville toward Lake Ontario encounter thick sequences of compressible glaciolacustrine silts and clays that demand a fundamentally different tunnelling approach. This variability, shaped by the Oak Ridges Moraine deposits and the Lake Iroquois plain, means that standardized tunnel designs without site-specific investigation carry unacceptable risk. The municipality of Clarington has seen steady infrastructure growth along the Highway 2 corridor, pushing new sewer, watermain, and utility tunnels through these soft deposits. A thorough soft ground tunnel analysis documents the undrained shear strength, consolidation characteristics, and groundwater regime that govern excavation stability before any TBM or sequential excavation method is selected.
Clarington's glaciolacustrine clays show undrained shear strengths as low as 20 kPa at tunnel invert depth, requiring face support pressures calibrated to centimetre-level deformation tolerances.
Methodology and scope
Local ground factors
The near-surface aquifer within the Lake Iroquois sand plain beneath southern Clarington maintains a hydraulic connection to Lake Ontario, sustaining high pore pressures that reduce effective stress at tunnel depth. Combined with the sensitive nature of the glaciolacustrine clays, which lose up to 80% of their undisturbed strength upon remoulding, the risk of face collapse during open-face excavation or TBM intervention is material. Squeezing ground conditions develop when the overburden pressure exceeds approximately four times the undrained shear strength, a threshold frequently crossed in Clarington at depths below 12 metres. Surface settlement troughs can extend well beyond the typical 45-degree influence zone, threatening adjacent structures, buried utilities, and roadway pavements along Highway 401 and regional roads. Long-term consolidation settlement, driven by pore pressure dissipation around the tunnel lining, requires explicit prediction through coupled hydro-mechanical analysis.
Video resource
Relevant standards
NBCC 2020 Division B, Part 4 governs structural design, while CSA A23.3:19 addresses concrete structure design; geotechnical testing follows ASTM D4767-11 for consolidated undrained triaxial compression of cohesive soils, ASTM D2435/D2435M-11 for one-dimensional consolidation properties, and ASTM D5778-20 for electronic friction cone and piezocone penetration testing of soils.
Associated technical services
Pre-Construction Tunnel Investigation
CPTu soundings with pore pressure dissipation, continuous sampling of soft clay units, laboratory determination of strength and consolidation parameters, and preparation of geotechnical baseline reports for TBM selection and face support design in Clarington's glaciolacustrine deposits.
Tunnel-Induced Settlement Analysis
Coupled finite element or finite difference modelling of ground loss and consolidation settlement, including building damage assessment using the Burland methodology and utility strain evaluation for Clarington's infrastructure corridors.
Typical parameters
Common questions
What typical depth range requires soft soil tunnelling in Clarington?
Soft soil conditions in Clarington generally control tunnel design for depths between 6 and 25 metres below ground surface. In this range, the combined effects of low undrained shear strength and elevated groundwater pressure make open-face excavation impractical and necessitate closed-face TBM operation with continuous face support.
How much does a soft soil tunnel geotechnical investigation cost in Clarington?
Which laboratory tests are critical for soft soil tunnel design?
Consolidated undrained triaxial tests with pore pressure measurement (ASTM D4767) provide the effective stress strength envelope, while one-dimensional consolidation tests (ASTM D2435) define the compressibility and consolidation rate of Clarington's glaciolacustrine clays. Index testing for Atterberg limits and grain size distribution supports soil classification and correlates with strength and stiffness parameters across the alignment.
